Our water softener systems are custom-designed for your specific needs. Depending on the size of your home, family size, hardness, and plumbing, we consider these factors before recommending a softener for your home. This alleviates over-sizing or under-sizing systems which can be a problem in itself.

Let our experts show you how to save money and time with the right system for you and your home.

Water Softening Resin
Softening resin makes your water silky smooth by reducing scale-forming minerals.

Quartz media
Quartz media for enhanced distribution and cleaner water.

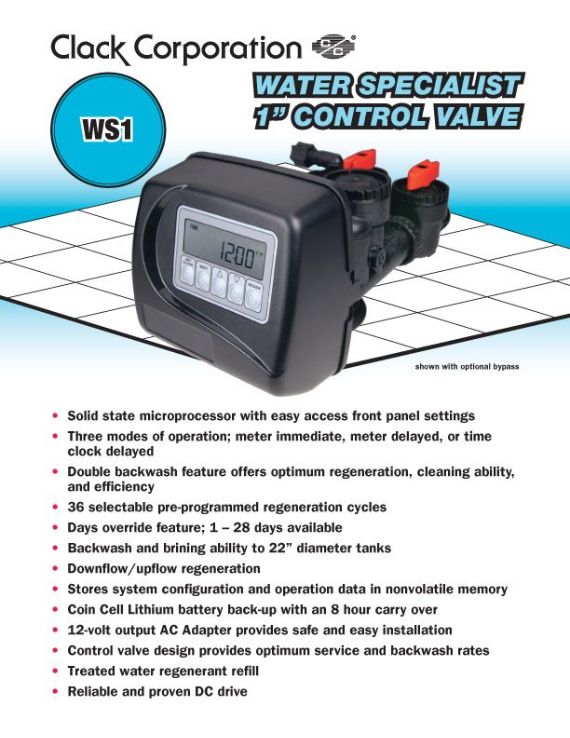

Clack WS1 Control Valve
• Solid state microprocessor with easy access to front panel settings
• Three modes of operation; meter immediate, meter delayed, or time clock delayed
• Double backwash feature offers optimum regeneration, cleaning ability, and efficiency
• Capable of 36 pre-programmed regeneration cycles based on control valve setting
• Days override feature; 1 – 28 days available
• Backwash and brining ability to 21” diameter tanks
• Downflow/up-flow regeneration
• Stores system configuration and operation data in nonvolatile memory
• Coin Cell Lithium battery backup with an 8-hour carry over
• Level VI 15-volt output DC power supply provides safe and easy installation
• Control valve design provides optimum service and backwash rates
• Pre or Post treated water regenerant refill
• Reliable and proven DC drive
• One piece expanding seal spacer stack assembly
• Linearly reciprocating piston operation

SPECIFICATIONS
Inlet/Outlet Fittings

Size: ¾” to 1.5” NPS
Cycles

Maximum: up to 6
Valve Material

Type: Fiber Reinforced Composite
Regeneration

Modes: Downflow/Upflow
Flow Rates

Service (15 psi drop, includes bypass and meter): 27 gpm
Backwash (25 psi drop, includes bypass): 27 gpm
Cv Service: 7.0
Cv Backwash: 5.4
Operating Pressures

Range: 20 psi – 125 psi
Operating Temperatures

Range: 40º – 110º F
Meter

Accuracy: ± 5%
Flow Rate Range: 0.25 – 27 gpm
Gallon Range: 20 – 50,000 gallons
Totalizer: 1000 – 9,999,000 gallons
Electrical Specifications Power Supply

U.S.: 100VAC to 120VAC, 50/60 Hz, Output: 15VDC, 500 mA
Cycles of Operation (Softener Downflow)

Backwash 1st (upflow): 6 – 12 minutes
Regenerate Draw/Slow Rinse (downflow): 45 – 75 minutes
Backwash 2nd (upflow): 3 – 12 minutes
Fast Rinse (downflow): 3 – 8 minutes
Regenerant Refill (in service with treated water): As Programmed
Service (downflow)
